Cov Khoom Muag Thiab Cov Neeg Nkoj Lift

Name: Tuam Tshoj kev cai khoom thiab neeg caij nqa nqa Manufacturers Hoobkas - Zoo Nqe - Weibo of Elevator
Brand: Webstar
SKU: 300852528

Webstar tau mob siab rau kev tsim khoom thiab kev tshawb fawb thiab kev txhim kho of elevator. Yog tias koj txaus siab rau cov khoom thiab cov neeg caij tsheb nqa, koj tuaj yeem tiv tauj peb txhua lub sijhawm los tham txog cov ntsiab lus.

Xa kev nug

Khoom Taw qhia

Khoom Paub meej

Cov khoom thiab cov neeg caij tsheb nqa, los ntawm "ib lub elevator rau ob lub hom phiaj", los ntawm kev ntxiv dag zog rau cov qauv thiab ntsuas kev ua haujlwm, tuaj yeem txhim kho kev ua tau zoo thiab txo cov nqi tag nrho hauv ib puag ncig tshwj xeeb. Hom of elevator no tuaj yeem siv rau hauv cov chaw uas tsis muaj cov khoom thauj khoom hnyav, xws li cov chaw tsim khoom me, cov tsev muag khoom loj, cov tsev noj mov me, tsev noj mov hauv tsev kawm ntawv thiab lwm qhov chaw uas nws tuaj yeem hloov pauv ntawm cov khoom thauj khoom thauj thiab cov neeg caij elevator.

abcc1012-2c17-4452-a7cf-f161555826f0

Qhov zoo

Txhim khu kev ua tau zoo thiab kev lag luam. Nws hloov cov nqi thiab lub sijhawm ntawm kev teeb tsa cov neeg nrog caij elevators thiab freight elevators cais, uas tuaj yeem txo cov neeg caij tsheb tos lub sijhawm thiab txhim kho kev ua haujlwm ntawm kev thauj khoom.

Cov khoom thiab cov neeg caij tsheb nqa feem ntau muaj peev xwm thauj khoom ntau dua 1,600 kg. Lawv qhov chaw ua haujlwm yog qhov dav thiab du, thiab lub tsheb, hauv pem teb thiab sab phab ntsa yog qhov ruaj khov dua, uas tuaj yeem tiv taus kev sib tsoo ntawm cov khoom thiab lwm yam xwm txheej.

Lub elevator tau nruab nrog ntau yam los tiv thaiv -pinch li xws li cov ntaub thaiv teeb. Qee qhov tuaj yeem muab qhov yuam kev kaw qhov rooj kom tiv thaiv lub elevator los ntawm kev nyob ntev. Lub elevator no yog tsim los yooj yim thiab tuaj yeem nruab nrog ob lub qhov rooj lossis los ntawm lub qhov rooj kom yooj yim thauj khoom. Sab hauv ntawm chav tsev yog yooj yim, meej thiab yooj yim los ntxuav.

Specification

WEBSTAR WP & WPN series neeg nrog caij of elevator
Tshuab chav	MR / MRL
Ceev	1.0m/s,1.5m/s,1.75m/s,2.0m/s,2.5m/s,4.0m/s,6.0m/s
Load peev	400kg, 450kg, 630kg, 800kg, 1000kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg
Mus ncig qhov siab	3.2m - 125m
Tsav hom	VVVF
tswj qhov system	huab tais
Traction tshuab	Gearless
Cabin loj	Raws li tus ncej loj

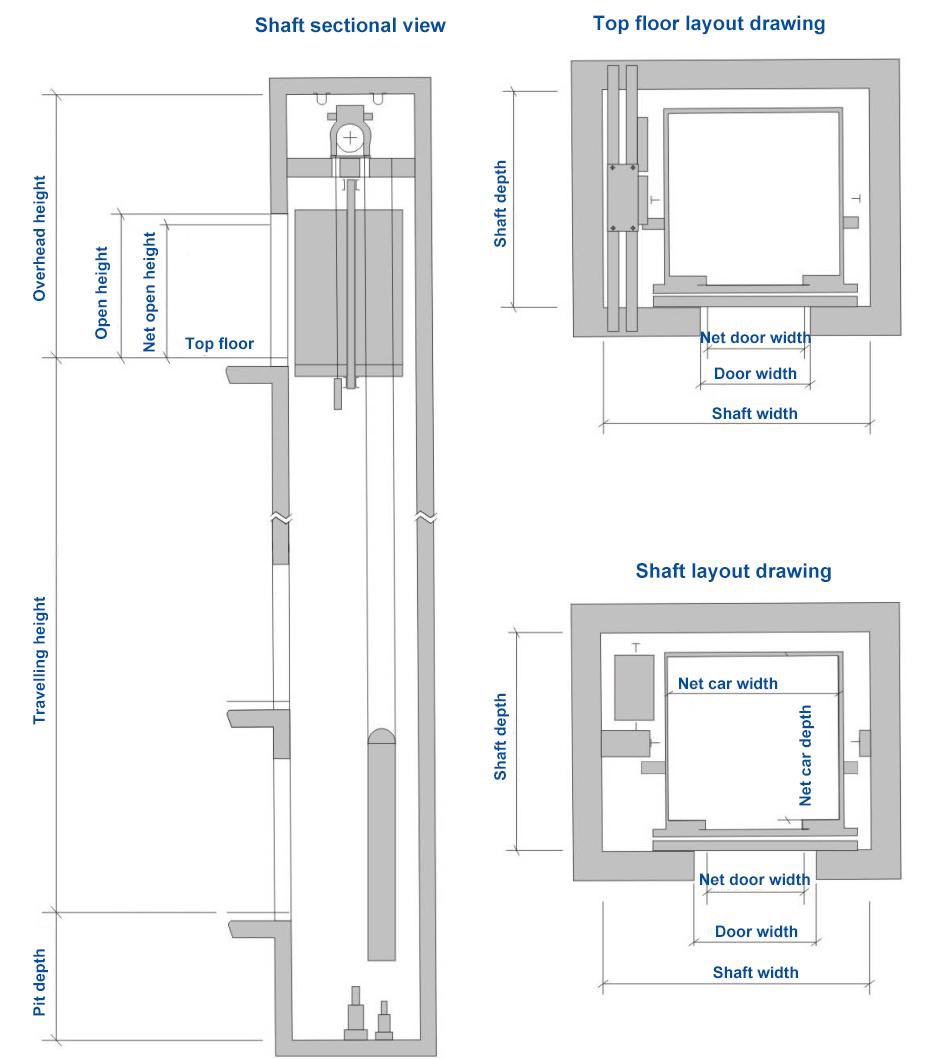

Tshuab Roomless of elevator

Main specifications
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Tsheb loj (mm)			Qhov rooj qhib qhov loj (mm)			Ncej loj (mm)		Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Dav	Qhov tob	Qhov siab	Dav	Qhov siab	Hom	Dav	Qhov tob	Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
450	1	1000	1100	2400	700	2100	CO	1850	1700	Sab laug	50	1500	4100	2:1
450	1.5	1000	1100	2400	700	2100	CO	1850	1700	Sab laug	75	1600	4300	2:1
630	1	1100	1400	2400	800	2100	CO	2000	1850	Sab laug	50	1500	4100	2:1
	1.5	1100	1400	2400	800	2100	CO	2000	1850	Sab laug	75	1600	4300	2:1
	1.75	1100	1400	2400	800	2100	CO	2000	1850	Sab laug	90	1700	4500	2:1
800	1	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	50	1500	4100	2:1
	1.5	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	75	1600	4300	2:1
	1.75	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	90	1700	4500	2:1
	2	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	100	1800	4600	2:1
	2.5	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	125	1900	4800	2:1
1000	1	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	50	1500	4100	2:1
	1.5	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	75	1600	4300	2:1
	1.75	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	90	1700	4500	2:1
	2	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	100	1800	4600	2:1
	2.5	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	125	1900	4800	2:1
1150	1	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	50	1500	4100	2:1
	1.5	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	75	1600	4300	2:1
	1.75	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	50	1700	4500	2:1
	2	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	125	1800	4600	2:1
	2.5	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	75	1900	4800	2:1
1250	1	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	50	1500	4100	2:1
	1.5	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	75	1600	4300	2:1
	1.75	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	50	1700	4500	2:1
	2	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	125	1800	4600	2:1
	2.5	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	75	1900	4800	2:1
1350	1	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	125	1500	4100	2:1
	1.5	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	125	1600	4300	2:1
	1.75	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	125	1700	4500	2:1
	2	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	50	1800	4600	2:1
	2.5	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	75	1900	4800	2:1
1600	1	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	90	1500	4100	2:1
	1.5	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	100	1600	4300	2:1
	1.75	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	125	1700	4500	2:1
	2	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	125	1800	4600	2:1
	2.5	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	125	1900	4800	2:1

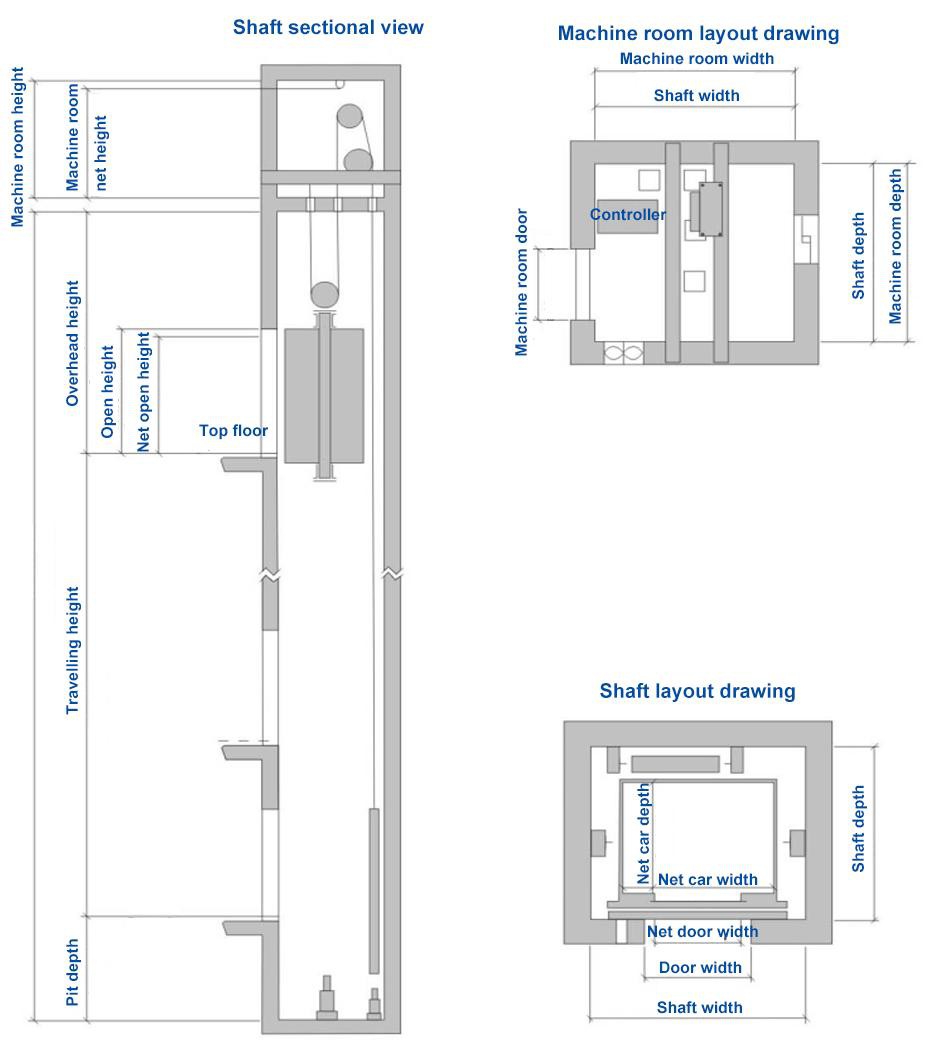

Tshuab Room of elevator

Main specifications
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Tsheb loj (mm)			Qhov rooj qhib qhov loj (mm)			Ncej loj (mm)		Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Dav	Qhov tob	Qhov siab	Dav	Qhov siab	Hom	Dav	Qhov tob	Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
450	1	1100	1000	2400	700	2100	CO	1700	1650	Qab	50	1500	4500	2:1
450	1.5	1100	1000	2400	700	2100	CO	1700	1650	Qab	75	1600	4600	2:1
630	1	1400	1100	2400	800	2100	CO	2000	1750	Qab	50	1500	4500	2:1
	1.5	1400	1100	2400	800	2100	CO	2000	1750	Qab	75	1600	4600	2:1
	1.75	1400	1100	2400	800	2100	CO	2000	1750	Qab	90	1700	4700	2:1
800	1	1400	1350	2400	800	2100	CO	2000	2000	Qab	50	1500	4500	2:1
	1.5	1400	1350	2400	800	2100	CO	2000	2000	Qab	75	1600	4600	2:1
	1.75	1400	1350	2400	800	2100	CO	2000	2000	Qab	90	1700	4700	2:1
	2	1400	1350	2400	800	2100	CO	2000	2000	Qab	100	1800	4800	2:1
	2.5	1400	1350	2400	800	2100	CO	2000	2000	Qab	125	1900	5100	2:1
1000	1	1600	1400	2400	900	2100	CO	2200	2050	Qab	50	1500	4500	2:1
	1.5	1600	1400	2400	900	2100	CO	2200	2050	Qab	75	1600	4600	2:1
	1.75	1600	1400	2400	900	2100	CO	2200	2050	Qab	90	1700	4700	2:1
	2	1600	1400	2400	900	2100	CO	2200	2050	Qab	100	1800	4800	2:1
	2.5	1600	1400	2400	900	2100	CO	2200	2050	Qab	125	1900	5100	2:1
1150	1	1700	1500	2400	1000	2100	CO	2300	2150	Qab	50	1500	4500	2:1
	1.5	1700	1500	2400	1000	2100	CO	2300	2150	Qab	75	1600	4600	2:1
	1.75	1700	1500	2400	1000	2100	CO	2300	2150	Qab	90	1700	4700	2:1
	2	1700	1500	2400	1000	2100	CO	2300	2150	Qab	100	1800	4800	2:1
	2.5	1700	1500	2400	1000	2100	CO	2300	2150	Qab	125	1900	5100	2:1
1250	1	1950	1400	2400	1000	2100	CO	2600	2100	Qab	50	1500	4500	2:1
	1.5	1950	1400	2400	1000	2100	CO	2600	2100	Qab	75	1600	4600	2:1
	1.75	1950	1400	2400	1000	2100	CO	2600	2100	Qab	90	1700	4700	2:1
	2	1950	1400	2400	1000	2100	CO	2600	2100	Qab	100	1800	4800	2:1
	2.5	1950	1400	2400	1000	2100	CO	2600	2100	Qab	125	1900	5100	2:1
1350	1	1950	1500	2400	1000	2100	CO	2600	2300	Qab	50	1500	4500	2:1
	1.5	1950	1500	2400	1000	2100	CO	2600	2300	Qab	75	1600	4600	2:1
	1.75	1950	1500	2400	1000	2100	CO	2600	2300	Qab	90	1700	4700	2:1
	2	1950	1500	2400	1000	2100	CO	2600	2300	Qab	100	1800	4800	2:1
	2.5	1950	1750	2400	1000	2100	CO	2600	2300	Qab	125	1900	5100	2:1
1600	1	1950	1750	2400	1000	2100	CO	2600	2550	Qab	50	1500	4500	2:1
	1.5	1950	1750	2400	1000	2100	CO	2600	2550	Qab	75	1600	4600	2:1
	1.75	1950	1750	2400	1000	2100	CO	2600	2550	Qab	90	1700	4700	2:1
	2	1950	1750	2400	1000	2100	CO	2600	2550	Qab	100	1800	4800	2:1
	2.5	1950	1750	2400	1000	2100	CO	2600	2550	Qab	125	1900	5100	2:1
