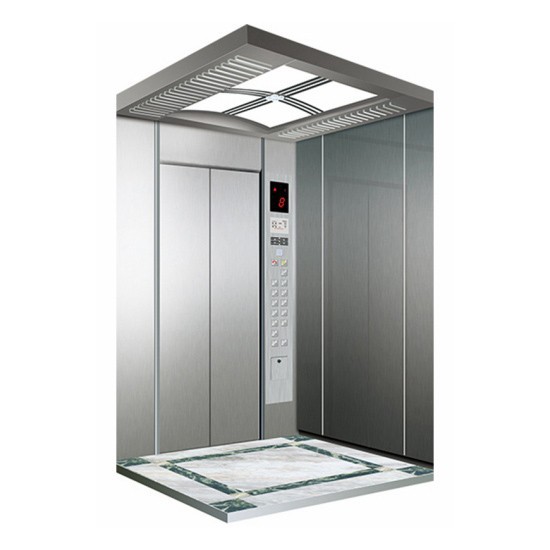

Kev tsim kho neeg nrog caij Lift

Name: Tuam Tshoj Kev tsim kho neeg nrog caij Lift Manufacturers, lwm tus neeg thiab Hoobkas - Zoo Nqe - Weibo of Elevator
Brand: Webstar
SKU: 300855042

Lub Webstar siv cov neeg caij tsheb nqa cov khoom txais yuav cov khoom siv ruaj khov ruaj khov synchronous gearless traction thev naus laus zis hauv ntiaj teb tam sim no. Ua ke nrog tag nrho microcomputer ntse tswj system thiab kev siv of elevator- tshwj xeeb VVVF zaus hloov pauv, cov khoom lag luam no muaj kev ua tau zoo xws li kev tiv thaiv ib puag ncig ntsuab, kev ua haujlwm siab thiab kev txuag hluav taws xob, qhov chaw -txuag, kev nyab xeeb thiab kev nplij siab. Yog tias koj txaus siab rau peb lub elevator, koj tuaj yeem tiv tauj peb txhua lub sijhawm.

Xa kev nug

Khoom Taw qhia

Khoom Paub meej

Kev tsim kho cov neeg caij tsheb nqa tau dhau los ua cov cuab yeej kev thauj mus los ntsug tsis tseem ceeb hauv niaj hnub architecture. Lawv muaj ntau-seem thiab tuaj yeem yooj yim rau cov neeg siv. Rau qee qhov, lawv tuaj yeem cuam tshuam rau kev ua haujlwm, kev ua tau zoo thiab tus nqi ntawm cov tsev, uas yog qhov tseem ceeb ntawm kev txhim kho muaj peev xwm.

Qhov zoo

Nws tuaj yeem ua rau txoj kab ntsug ua haujlwm tau zoo dua qub, txo lub sijhawm cov neeg siv nce toj ntaiv hauv cov tsev, txo kev tawm dag zog lub cev, thiab ua kom cov tsev siab dua - nce kev lag luam muaj txiaj ntsig thiab txhim kho lawv qhov kev siv. Lub peev xwm nqa tau loj tuaj yeem ua rau muaj kev cuam tshuam zoo rau cov neeg khiav dej num thaum lub sij hawm ncov los ntawm pab pawg tswj kev ua haujlwm, ua kom muaj kev sib tw ntawm kev khiav tsheb hauv lub tsev.

Kev tsim kho cov neeg caij tsheb tuaj yeem txhim kho kev siv av thiab nthuav dav ntxiv rau txoj kev loj hlob nyob rau hauv ib cheeb tsam thaj av, tshwj xeeb tshaj yog rau siab -cov tsev ua haujlwm siab, tsev so, chaw nyob, thiab lwm yam. Rau qee qhov, nws tuaj yeem txhim kho kev lag luam tseem ceeb, tshwj xeeb tshaj yog nyob rau hauv cov chaw ua lag luam thiab khw muag khoom.

Cov elevator niaj hnub no tau nruab nrog cov qauv kev nyab xeeb siab heev, uas muaj kev tiv thaiv kev tiv thaiv overspeed, buffers, ceev limiters, VVVF kuj tsis paub meej zaus qhov rooj cav, ARD, thiab lwm yam. of the elevator thev naus laus zis tau tsim los ze li ib puas xyoo, nrog rau cov cuab yeej paub tab, ua tiav kev tu thiab ua haujlwm tsis zoo.

Nws kuj qhia tau tias muaj kev sib koom ua ke thiab tib neeg txoj kev xav hauv txhua yam. Txawm hais tias nws yog cov neeg laus, cov poj niam cev xeeb tub, menyuam yaus lossis lwm tus neeg uas muaj teeb meem kev txav mus los, lawv txhua tus tuaj yeem siv nws sib npaug. Cov hlau nplaum ruaj khov synchronous gearless traction tshuab thiab kev tswj hwm kev tswj hwm nws tau nruab nrog tuaj yeem muab cov neeg caij tsheb nrog kev paub zoo.

Ntawm qhov tod tes, nws tuaj yeem yog qhov zoo nkauj zoo nkauj ntawm architecture, txhim kho qib spatial los ntawm kev tsim lub tsev zoo nkauj thiab teeb pom kev zoo. Ntawm qhov tod tes, nws muab architects nrog ntau tus qauv yooj yim, thiab txawm tias ntau tus qauv tsim tuaj yeem txuas ntxiv nyob ib ncig ntawm lub elevator.

Specification

WEBSTAR WP & WPN series neeg nrog caij of elevator
Tshuab chav	MR / MRL
Ceev	1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 4.0m/s, 6.0m/s
Load peev	400kg, 450kg, 630kg, 800kg, 1000kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg
Mus ncig qhov siab	3.2m - 125m
Tsav hom	VVVF
tswj qhov system	huab tais
Traction tshuab	Gearless
Cabin loj	Raws li tus ncej loj

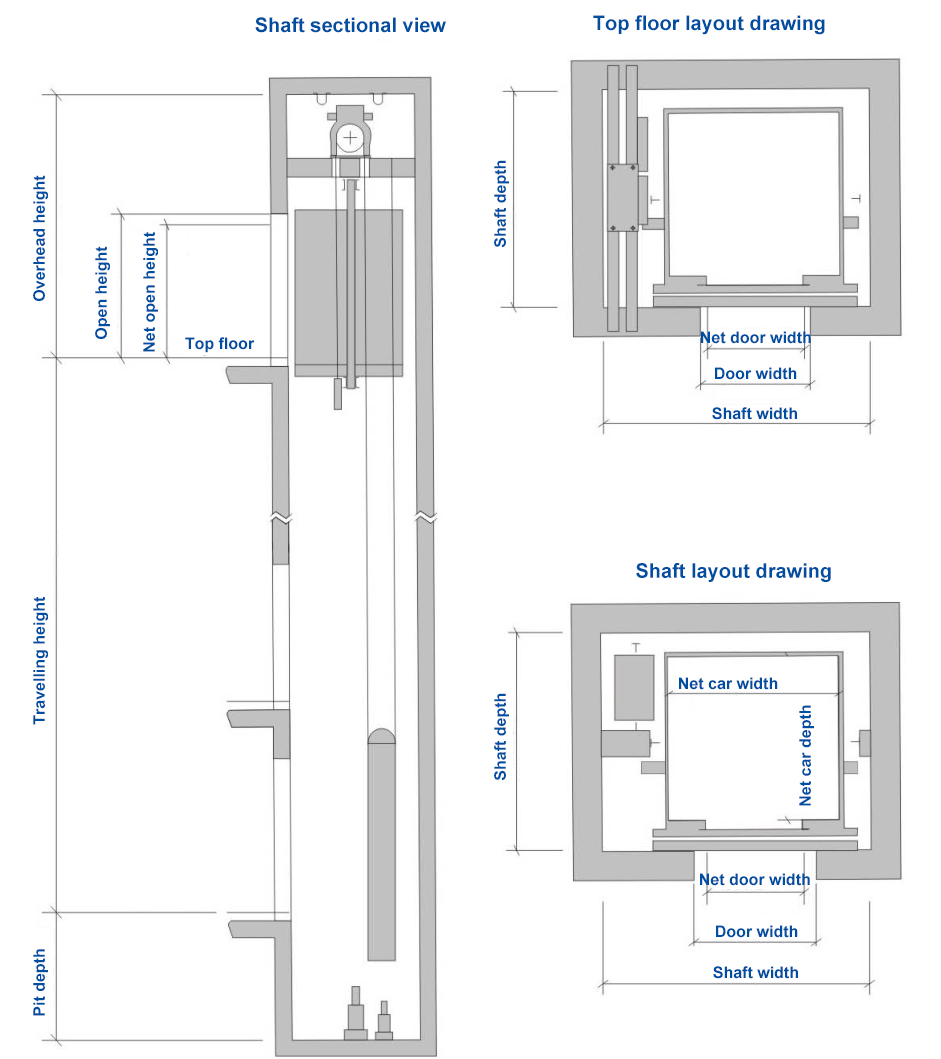

Tshuab Roomless of elevator

product-941-1059

Main specifications
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Tsheb loj (mm)			Qhov rooj qhib qhov loj (mm)			Ncej loj (mm)		Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Dav	Qhov tob	Qhov siab	Dav	Qhov siab	Hom	Dav	Qhov tob	Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
450	1	1000	1100	2400	700	2100	CO	1850	1700	Sab laug	50	1500	4100	2:1
450	1.5	1000	1100	2400	700	2100	CO	1850	1700	Sab laug	75	1600	4300	2:1
630	1	1100	1400	2400	800	2100	CO	2000	1850	Sab laug	50	1500	4100	2:1
	1.5	1100	1400	2400	800	2100	CO	2000	1850	Sab laug	75	1600	4300	2:1
	1.75	1100	1400	2400	800	2100	CO	2000	1850	Sab laug	90	1700	4500	2:1
800	1	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	50	1500	4100	2:1
	1.5	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	75	1600	4300	2:1
	1.75	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	90	1700	4500	2:1
	2	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	100	1800	4600	2:1
	2.5	1400	1350	2400	800	2100	CO	2200	1800	Sab laug	125	1900	4800	2:1
1000	1	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	50	1500	4100	2:1
	1.5	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	75	1600	4300	2:1
	1.75	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	90	1700	4500	2:1
	2	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	100	1800	4600	2:1
	2.5	1600	1400	2400	900	2100	CO	2450	1900	Sab laug	125	1900	4800	2:1
1150	1	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	50	1500	4100	2:1
	1.5	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	75	1600	4300	2:1
	1.75	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	50	1700	4500	2:1
	2	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	125	1800	4600	2:1
	2.5	1500	1700	2400	1000	2100	CO	2400	2100	Sab laug	75	1900	4800	2:1
1250	1	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	50	1500	4100	2:1
	1.5	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	75	1600	4300	2:1
	1.75	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	50	1700	4500	2:1
	2	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	125	1800	4600	2:1
	2.5	1500	1900	2400	1000	2100	CO	2400	2350	Sab laug	75	1900	4800	2:1
1350	1	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	125	1500	4100	2:1
	1.5	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	125	1600	4300	2:1
	1.75	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	125	1700	4500	2:1
	2	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	50	1800	4600	2:1
	2.5	1950	1500	2400	1000	2100	CO	2900	2100	Sab laug	75	1900	4800	2:1
1600	1	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	90	1500	4100	2:1
	1.5	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	100	1600	4300	2:1
	1.75	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	125	1700	4500	2:1
	2	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	125	1800	4600	2:1
	2.5	1950	1700	2400	1000	2100	CO	2900	2400	Sab laug	125	1900	4800	2:1

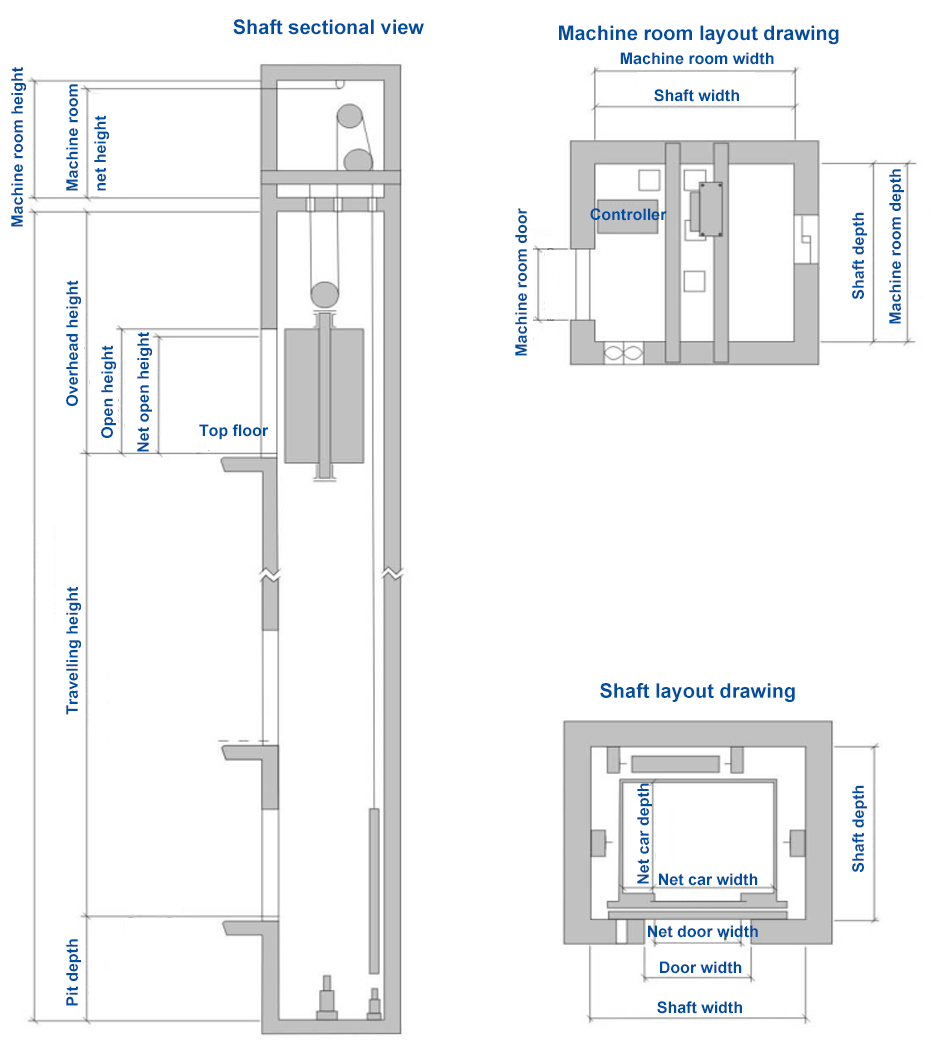

Tshuab Room of elevator

product-941-1059

Main specifications
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Tsheb loj (mm)			Qhov rooj qhib qhov loj (mm)			Ncej loj (mm)		Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
Chaw thau khoom muaj peev xwm (kg)	Rated ceev (m / s)	Dav	Qhov tob	Qhov siab	Dav	Qhov siab	Hom	Dav	Qhov tob	Counterweight txoj hauj lwm	Max. taug kev qhov siab (m)	Qhov tob (mm)	Sab saum toj pem teb qhov siab (mm)	Roping
450	1	1100	1000	2400	700	2100	CO	1700	1650	Qab	50	1500	4500	2:1
450	1.5	1100	1000	2400	700	2100	CO	1700	1650	Qab	75	1600	4600	2:1
630	1	1400	1100	2400	800	2100	CO	2000	1750	Qab	50	1500	4500	2:1
	1.5	1400	1100	2400	800	2100	CO	2000	1750	Qab	75	1600	4600	2:1
	1.75	1400	1100	2400	800	2100	CO	2000	1750	Qab	90	1700	4700	2:1
800	1	1400	1350	2400	800	2100	CO	2000	2000	Qab	50	1500	4500	2:1
	1.5	1400	1350	2400	800	2100	CO	2000	2000	Qab	75	1600	4600	2:1
	1.75	1400	1350	2400	800	2100	CO	2000	2000	Qab	90	1700	4700	2:1
	2	1400	1350	2400	800	2100	CO	2000	2000	Qab	100	1800	4800	2:1
	2.5	1400	1350	2400	800	2100	CO	2000	2000	Qab	125	1900	5100	2:1
1000	1	1600	1400	2400	900	2100	CO	2200	2050	Qab	50	1500	4500	2:1
	1.5	1600	1400	2400	900	2100	CO	2200	2050	Qab	75	1600	4600	2:1
	1.75	1600	1400	2400	900	2100	CO	2200	2050	Qab	90	1700	4700	2:1
	2	1600	1400	2400	900	2100	CO	2200	2050	Qab	100	1800	4800	2:1
	2.5	1600	1400	2400	900	2100	CO	2200	2050	Qab	125	1900	5100	2:1
1150	1	1700	1500	2400	1000	2100	CO	2300	2150	Qab	50	1500	4500	2:1
	1.5	1700	1500	2400	1000	2100	CO	2300	2150	Qab	75	1600	4600	2:1
	1.75	1700	1500	2400	1000	2100	CO	2300	2150	Qab	90	1700	4700	2:1
	2	1700	1500	2400	1000	2100	CO	2300	2150	Qab	100	1800	4800	2:1
	2.5	1700	1500	2400	1000	2100	CO	2300	2150	Qab	125	1900	5100	2:1
1250	1	1950	1400	2400	1000	2100	CO	2600	2100	Qab	50	1500	4500	2:1
	1.5	1950	1400	2400	1000	2100	CO	2600	2100	Qab	75	1600	4600	2:1
	1.75	1950	1400	2400	1000	2100	CO	2600	2100	Qab	90	1700	4700	2:1
	2	1950	1400	2400	1000	2100	CO	2600	2100	Qab	100	1800	4800	2:1
	2.5	1950	1400	2400	1000	2100	CO	2600	2100	Qab	125	1900	5100	2:1
1350	1	1950	1500	2400	1000	2100	CO	2600	2300	Qab	50	1500	4500	2:1
	1.5	1950	1500	2400	1000	2100	CO	2600	2300	Qab	75	1600	4600	2:1
	1.75	1950	1500	2400	1000	2100	CO	2600	2300	Qab	90	1700	4700	2:1
	2	1950	1500	2400	1000	2100	CO	2600	2300	Qab	100	1800	4800	2:1
	2.5	1950	1750	2400	1000	2100	CO	2600	2300	Qab	125	1900	5100	2:1
1600	1	1950	1750	2400	1000	2100	CO	2600	2550	Qab	50	1500	4500	2:1
	1.5	1950	1750	2400	1000	2100	CO	2600	2550	Qab	75	1600	4600	2:1
	1.75	1950	1750	2400	1000	2100	CO	2600	2550	Qab	90	1700	4700	2:1
	2	1950	1750	2400	1000	2100	CO	2600	2550	Qab	100	1800	4800	2:1
	2.5	1950	1750	2400	1000	2100	CO	2600	2550	Qab	125	1900	5100	2:1
