Ua haujlwm of Elevator
Product Overview
Webstar Stretcher Elevator yog lub elevator tshwj xeeb tsim los ntawm Weibo Elevator Co., Ltd. tshwj xeeb rau cov xwm txheej kho mob. Nws daim ntawv thov tseem ceeb yog hauv tsev kho mob, tsev laus, thiab lwm qhov chaw zoo sib xws. Nws yog siv rau kev nyab xeeb thiab ua haujlwm yooj yim thauj cov stretchers, cov neeg mob, thiab cov khoom siv kho mob, thiab yog cov cuab yeej tseem ceeb hauv kev kho mob. Yog tias koj muaj kev xav tau, thov hu rau peb.
Khoom Paub meej
Webstar Stretcher Elevator tau muab faib ua ob ntu: chav tshuab me (WB40/WB30) thiab tsis yog- chav tshuab (WBN30). Lawv ua tau raws li qhov xav tau ntawm ntau yam xwm txheej kho mob. Lub peev xwm thauj khoom loj yog 1000-1600kg, kev khiav ceev yog 1.0-1.75m / s. Lawv tuaj yeem xaiv tau yooj yim raws li qhov ntsuas ntawm lub tsev. Cov chav tsis siv tshuab tsim tuaj yeem txuag tau qhov chaw hauv tsev thiab txo cov nqi tsim kho, thiab tsim nyog rau ntau qhov sib txawv hauv tsev kho mob hoistway. Qhov ntev ntawm lub tsheb thiab lub qhov rooj qhib tau raug xam los ntawm cov kws tshaj lij. Lawv tau tsim los ua kom tau raws li qhov xav tau ntawm cov stretcher nkag thiab tawm. Lawv tuaj yeem yooj yim ua raws li tus qauv stretchers thiab tuaj yeem nkag mus tau yooj yim thiab tawm yam tsis muaj lub stretcher, txhim kho kev ua haujlwm ntawm kev cawm thaum muaj xwm txheej ceev thiab kev thauj mus los.
Los ntawm txoj kev xav, Webstar Stretcher Elevator integrates ntau yam technologies. Nws yog nruab nrog cov hlau nplaum ruaj khov synchronous gearless traction tshuab. Piv nrog rau cov iav tsoos- tsav elevator, lub tshuab traction yog ib nrab ntawm qhov loj me, siv lub zog tsawg dua, muaj kev ntseeg siab dua, thiab txo qhov kev vibration thiab suab nrov los ntawm iav kis tau tus mob.
Kev nyab xeeb thiab tib neeg tsim qauv khiav los ntawm tag nrho cov khoom Webstar. Webstar Stretcher Elevator nruab nrog kev tiv thaiv kev nyab xeeb ua tiav, muaj qhov tsis siv neeg tshawb nrhiav, teeb pom kev kub ntxhov, thiab kev ua haujlwm kub ceev, kom muaj kev nyab xeeb ntawm cov neeg caij tsheb thaum muaj xwm txheej ceev. Lub tsheb tseem tau nruab nrog lub thawv rau tus neeg tsis taus, lub suab tshaj tawm, khawm Braille, thiab tes tuav, ntsuas qhov ntev nrog kev saib xyuas tib neeg. Tsis tas li ntawd, cov khoom txhawb nqa kev tswj xyuas pab pawg thiab cov qauv sib luag, thiab tsim nyog rau cov kev xav tau ntawm kev thauj mus los thaum lub sij hawm ncov hauv tsev kho mob.
|
Load peev (kg) |
1000 |
1250 |
1350 |
1600 |
||||||||
|
Ceev (m / s) |
1.0 |
1.5 |
1.75 |
1.0 |
1.5 |
1.75 |
1.0 |
1.5 |
1.75 |
1.0 |
1.5 |
1.75 |
|
Qhov rooj qhib qhov loj (mm) |
1000 |
1000 |
1000 |
1300 |
||||||||
|

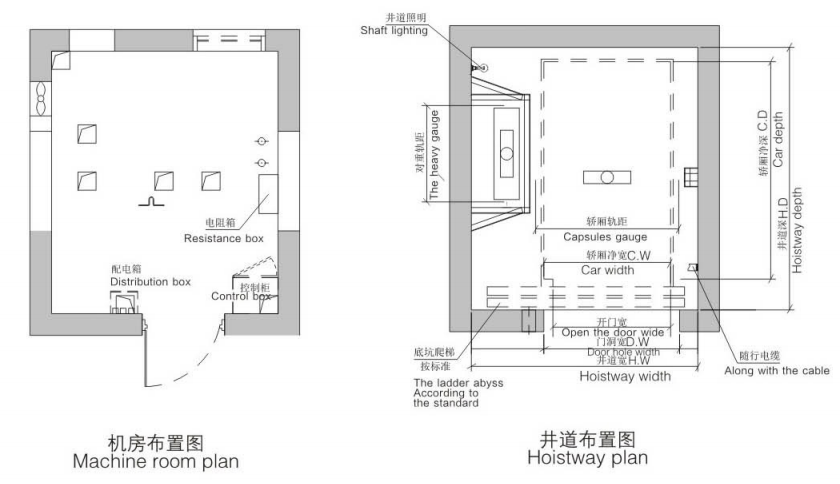

Qhov loj me (mm) |
1100x2100 |
1300x2200 |
1400x2200 |
1400x2400 |
||||||||
|
Ncej loj (mm) |
2100x2500 |
2300x2600 |
2400x2600 |
2500x2900 |
||||||||
|

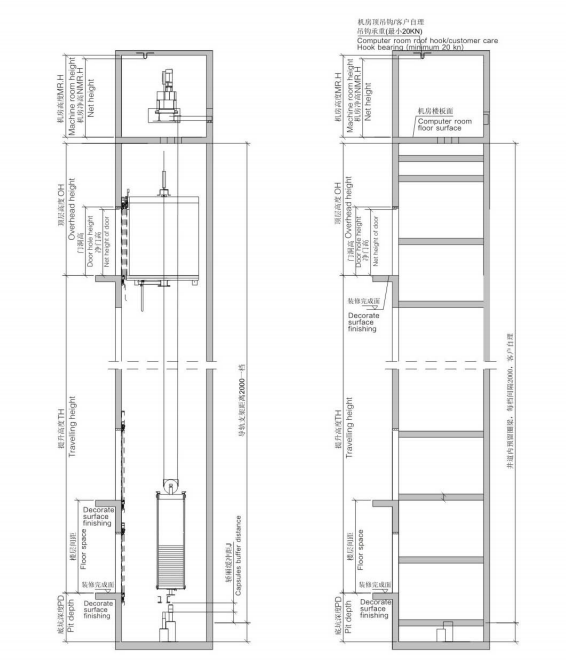

Overhead qhov siab (mm) |
4500 |
4600 |
4700 |
4500 |
4600 |
4700 |
4500 |
4600 |
4700 |
4500 |
4600 |
4700 |
|
Qhov tob (mm) |
1500 |
1600 |
1700 |
1500 |
1600 |
1700 |
1500 |
1600 |
1700 |
1500 |
1600 |
1700 |
|
Taug kev qhov siab (m) |
50 |
75 |
90 |
50 |
75 |
90 |
50 |
75 |
90 |
50 |
75 |
90 |
